Mapping and satellite data

A model with a grid
Download:
 HI-RES GIF (Size: 19 kb)
A simple example of traditional chorological mapping methods can show some of the fundamental principles of satellite images. In each square, the number of houses is counted as the basis of the chorological matrix.

Credits: ESA

  Chorological matrix

Chorological matrix
Download:
 HI-RES GIF (Size: 32 kb)
Chorological matrix.

Credits: ESA

  Histogram

Two classification examples based on a histogram
Download:
 HI-RES GIF (Size: 6 kb)

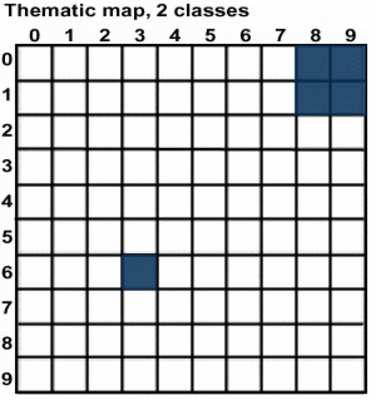

The illustration shows two classification examples based on the histogram shown. One classification has four classes (agriculture, village, town, and other) whereas the other has two (rural and town).

Credits: ESA

  Classification

Suitable classification depends on the purpose of the map
Download:
 HI-RES GIF (Size: 19 kb)
Suitable classification depends on the purpose of the map.

Credits: ESA


Classifications often require compromise
Download:
 HI-RES GIF (Size: 14 kb)
Classification often requires compromise.

Credits: ESA


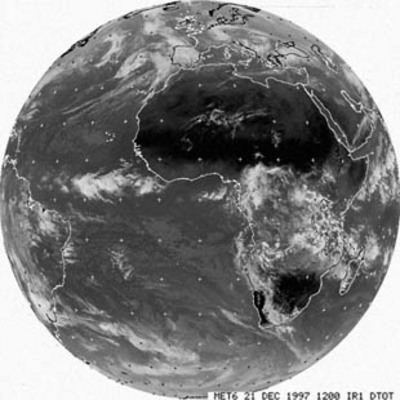

A digital image is a chorological matrix
Download:
 HI-RES JPEG (Size: 31 kb)
A digital image is a chorological matrix. The size of the squares in the grid is equal to the spatial resolution of the (satellite) image and depend upon the instrument providing the data. Similarly the numbers in the grid are determined by the ability of the equipment to distinguish variations. Digital images often contain values between 0 and 255, which are matched exactly by the capacity of 1 byte in the computer.

Credits: ESA
