| | | | | | | SMOS mission payload
| MIRAS consists of a central structure and three deployable arms, each of which has three segments. During launch, these arms are folded-up, but soon after separation from the launch vehicle they are gently deployed.
Credits: ESA - AOES Medialab | |  |  | |
| | | | | | MIRAS consists of a central structure and three deployable arms, each of which has three segments. There are 69 antenna elements, so-called LICEF receivers, equally distributed over the three arms and the central structure. Each LICEF is an antenna-receiver integrated unit that measures the radiation emitted from Earth within the L-band. | | | | |

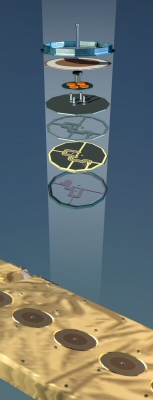

| | | | | | The LICEF antenna provides best performance in terms of gain, bandwidth adn differentiation of horizontal and vertical polarisation components of incoming microwaves. It consists of four probes implemented as pairs, which are rotated 90 degrees to each other so as to acquire the two different signal polarisations. Multi-layer 'microstrip' technology has been chosen for the circuit configuration. Each layer is dedicated to one polarisation. Each LICEF antenna weighs 190 g, is 165 mm in diameter and is 19 mm high. | | | | |
| | | | Last update: 11 February 2009 | |
