Cluster opens a new window on ‘magnetic reconnection’ in the near-Earth space

12 March 2007

Magnetic reconnection observed by Cluster
This artist's impression shows the four ESA's Cluster satellites flying through the Earth's magnetosphere and observing the 'magnetic reconnection' process.

Magnetic reconnection is a process that can occur almost anywhere that a magnetic field is found. In a reconnection event, the magnetic field lines are squeezed together somehow and spontaneously reconfigure themselves, releasing energy.

When it occurs near the surface of the Sun, such an event powers giant solar flares that can release thousands of millions of tonnes of electrically charged particles into space.

Credits: ESA

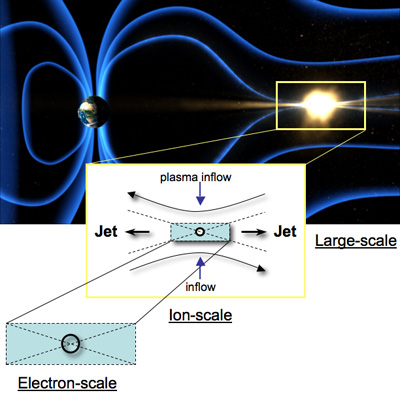

The scales of magnetic reconnection
Download:
 HI-RES JPG (Size: 229 kb)
This sketch illustrate the different scales relevant to the ‘magnetic reconnection’ process.

The Earth’s magnetic field creates a buffer zone, the magnetosphere, between our planet’s atmosphere and the particles released during these eruptions. The Sun also releases a steadier flow of charged particles called the solar wind. On the large-scale, any heading this way buffet the magnetosphere, and are deflected by it. Plasma physicists describe this behaviour with a theory called ‘magneto-hydrodynamics’ (MHD).

On smaller scales, however, the picture becomes rather more complicated. The particles can actually flow across the magnetic field lines. First to misbehave are the ions (positively charged particles). These break away from simple MHD on scales of less than a few hundred kilometres. On even smaller scales, less than 10 kilometres, the electrons (negatively charged particles) begin playing by other rules, too.

Credits: ESA



Download:
 HI-RES MOV (Size: 1940 kb)
This animation shows the four ESA's Cluster satellites flying through the Earth's magnetosphere and observing the 'magnetic reconnection' process.

Magnetic reconnection is a process that can occur almost anywhere that a magnetic field is found. In a reconnection event, the magnetic field lines are squeezed together somehow and spontaneously reconfigure themselves, releasing energy.

When it occurs near the surface of the Sun, such an event powers giant solar flares that can release thousands of millions of tonnes of electrically charged particles into space.

Credits: ESA
